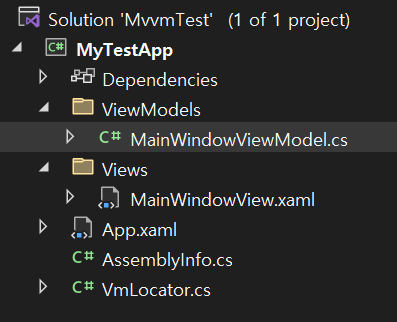

In the previous post, we explained how to create a MainWindowViewModel class that inherits from ObservableObject in the ViewModels folder and bind it to the DataContext of the MainWindow.xaml view.

Now, let's declare member variables in the created ViewModel and bind them to the TextBox control in the View.

When coding with the traditional MVVM pattern, the most annoying part was declaring member variables and notifying the PropertyChange event for each variable as shown below.

namespace MyTestApp.ViewModels
{
    public class MainWindowViewModel : INotifyPropertyChanged
    {
        public event PropertyChangedEventHandler PropertyChanged;

        public void OnPropertyChanged([CallerMemberName] string propertyName = null)
        {
            PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(propertyName));
        }

        private string title;
        public string Title
        {
            get
            {
                return title;
            }
            set
            {
                title = value;
                OnPropertyChanged();
            }
        }
     }
 }

Declaring a single variable is so verbose, and if you have to write 10 or 20 more, the amount of coding is considerable. It also makes the code feel cluttered. However, with CommunityToolkit.Mvvm in .Net 6 or higher, you can simply add an attribute, and the Code Generator will automatically generate the above code at compile time.

So the code becomes very simple as shown below. Excellent~!

using CommunityToolkit.Mvvm.ComponentModel;

namespace MyTestApp.ViewModels
{
    public partial class MainWindowViewModel : ObservableObject
    {
        [ObservableProperty]
        private string title;

        public MainWindowViewModel()
        {
            Title = "Initial Value";
        }
    }
}

When declaring member variables, you must use private and start the variable name with a lowercase letter. This is because the Code Generator creates a public variable with the same name starting with an uppercase letter.

Do not use getter/setter when declaring variables like title above. If you sometimes mindlessly add { get; set; }, you might waste precious time wondering why VS throws an error...

To use the above attribute for Code Generation, you need to add the partial keyword to the class. This is because the Code Generator creates a partial class with the same name in another file.

Now, open MainWindowView.xaml and add a TextBox control to the View.

<Window x:Class="MyTestApp.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:MyTestApp"
        mc:Ignorable="d"
        Title="MainWindow" Height="450" Width="800"
        DataContext="{Binding Source={StaticResource VmLocator}, Path=MainWindowVM}">
    <Grid>
        <TextBox></TextBox>
    </Grid>
</Window>

Now, bind the Text property of the TextBox control to the Title declared in the ViewModel as shown below.

    <Grid>
        <TextBox Text="{Binding Title}"></TextBox>
    </Grid>

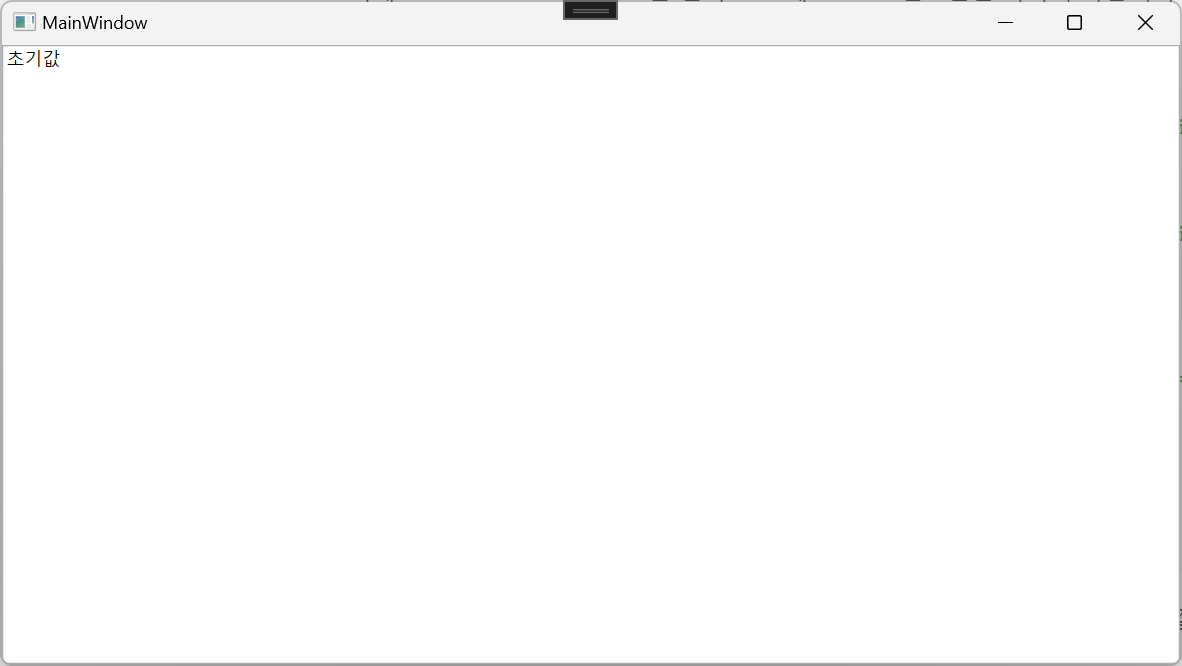

Press F5 to run the program, and since the constructor of the ViewModel assigns "Initial Value" to Title, the value will be displayed in the TextBox as shown below.

In this post, we learned how to declare variables in the ViewModel and bind those variables to controls in the View. In the next post, we will learn how to hook events in the ViewModel when the bound value changes due to user input.
